Setup Scan to Folder - Sharp

Setup Scan to Folder - Sharp

Setup Scan to Folder - Sharp

Create user -> scan password scan
Create Shared Folder on PC and give user scan full access

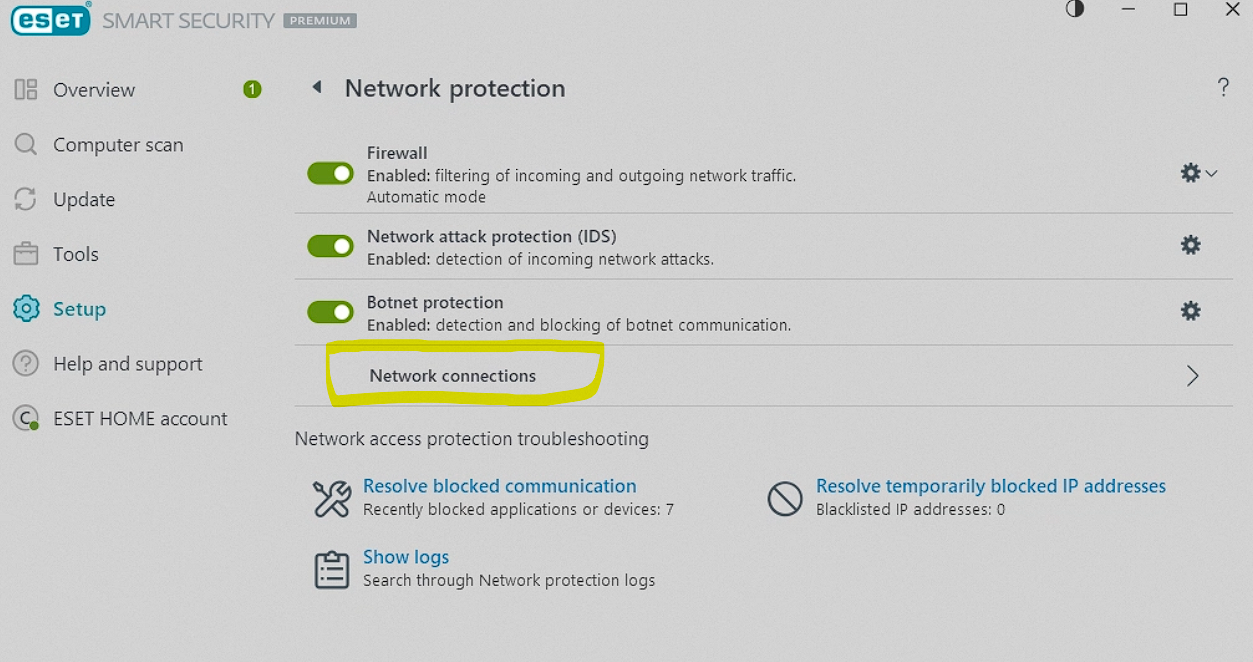

Open Eset Antivirus -> Setup -> Networks Connections


Make sure the connected network connection is trusted


Test if you can ping the pc's local ip from another PC if working setup printer if not working goto Firewall -> Configure -> Network Access Protection -> IP Sets and edit -> Add local IP range


Ok And test ping again

Setup Printer

Default admin password is admin
Click on Address Book
Enter users name and scroll to bottom
Select Network Folder
Network path : \\PC IP Address\shared name as in step 1
username and password : scan and scan as per step 2


Submit and Test
